JBL Control 50 pack Speaker

JBL Control 50 pack Speaker

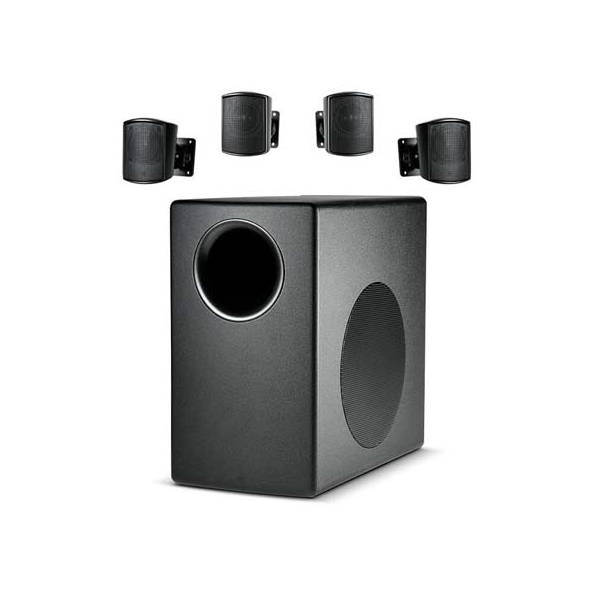

The Control 50 Series subwoofer-satellite loudspeaker system provides high fidelity sound in restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high fidelity foreground/background music is required from surfacemount system.

Specification :

• Frequency Range (-10dB) 32 Hz – 20 kHz
• Frequency Response (±3 dB) 50 Hz – 17 kHz
• Power Rating 200 Watts Continuous Program Power (100 hrs)
• 100 Watts Continuous Pink Noise (100 hrs)
• Sensitivity System: 87 dB with 4 satellites
• 85 dB with 2 satellites
• (depends on subwoofer boundary loading, see application note)
• Impedance 4 ohms with 4 satellites, 8 ohms with 2 satellites
• Transformer Taps 80W, 40W, 20W, (& 10W @ 70V), plus bypass/thru (listed as 8 ohms on switch to indicate
• subwoofer impedance
• Maximum SPL (1m) System: 107 dB with 4 satellites, continuous (113 dB peak)
• 105 dB with 2 satellites, continuous (111 dB peak)
• (depends on subwoofer boundary loading, see application note)
• Input Connectors Removable locking 2-pin connectors with screw-down terminals.
• Grille Zinc-plated steel
• Mounting Hardware C50S/T: 2-part flush wall-mount bracket included.
• C52: Wall swivel ball bracket included
• Included Accessories See Control 50S/T & Control 52
